Timbob's Awsome KH seat

mornish · December 28, 2006, 11:30am

awesome!

timbob1907 · December 28, 2006, 11:49am

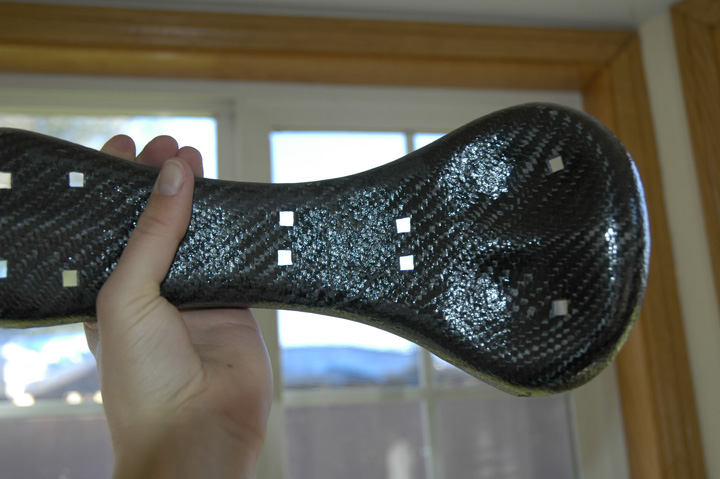

Done filing

Hooray im done filing! Now i need to see which bolts i should use.

timbob1907 · December 28, 2006, 12:06pm

Okay so i put one the bumpers and the seatpost to make sure that everything fit and the bolts were long enough. So unless you have really thick washers 3/4 inch bolts should be fine. Also i found out that if you want to put washers on the front bumper two of them have to be pretty small in order to fit.

timbob1907 · December 28, 2006, 12:27pm

Duct tape

Here is a gradual procedure of ductaping the Base enjoy:p

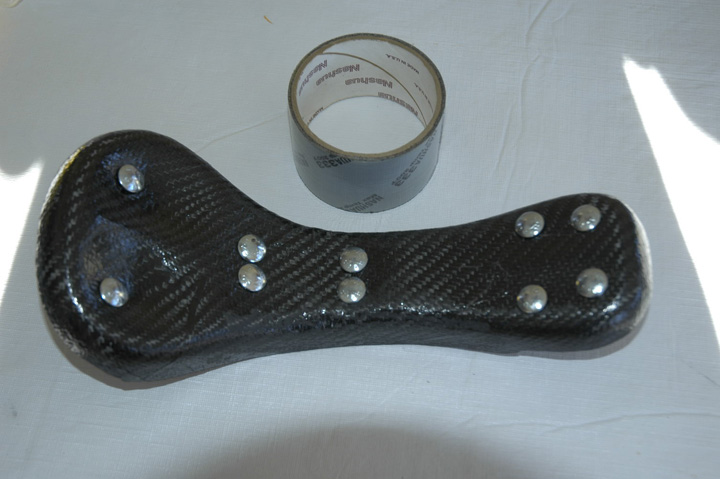

First you have a seat and duct tape…

timbob1907 · December 28, 2006, 12:28pm

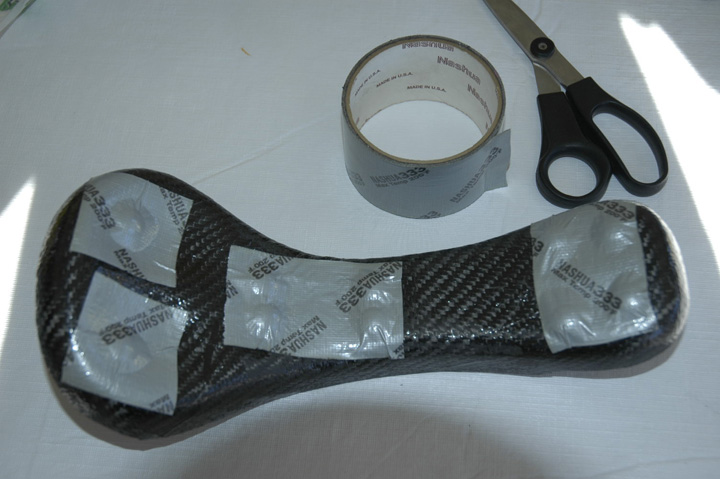

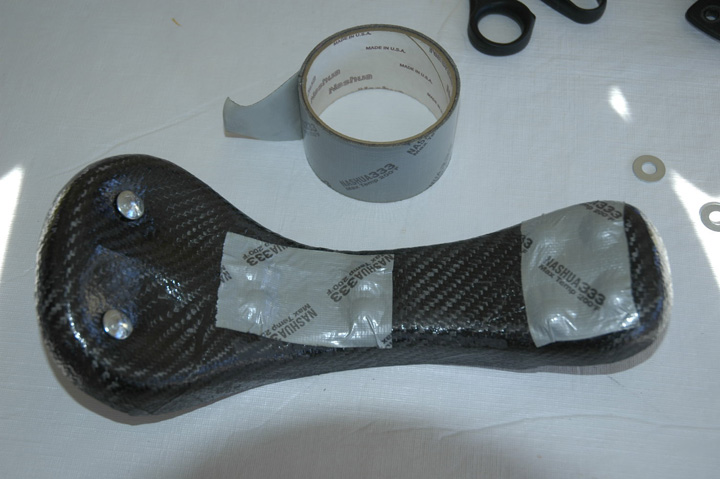

Then you add some ductape to keep the bolts in place!..

timbob1907 · December 28, 2006, 12:29pm

Add more tape…

timbob1907 · December 28, 2006, 12:30pm

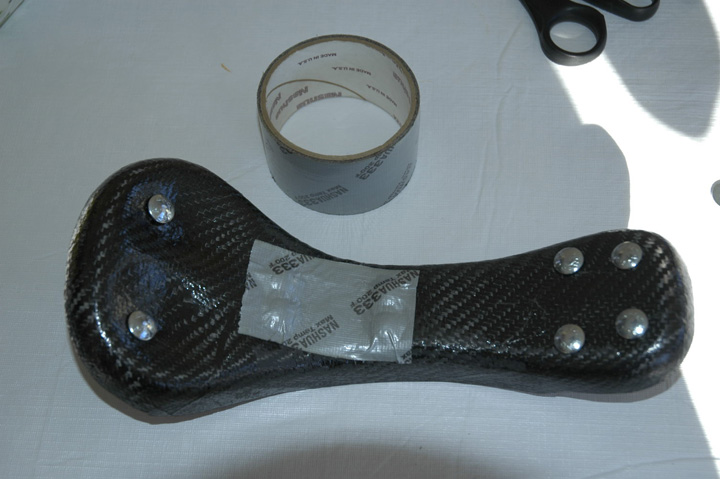

and add two more pieces to attach all of the bolts…

timbob1907 · December 28, 2006, 12:31pm

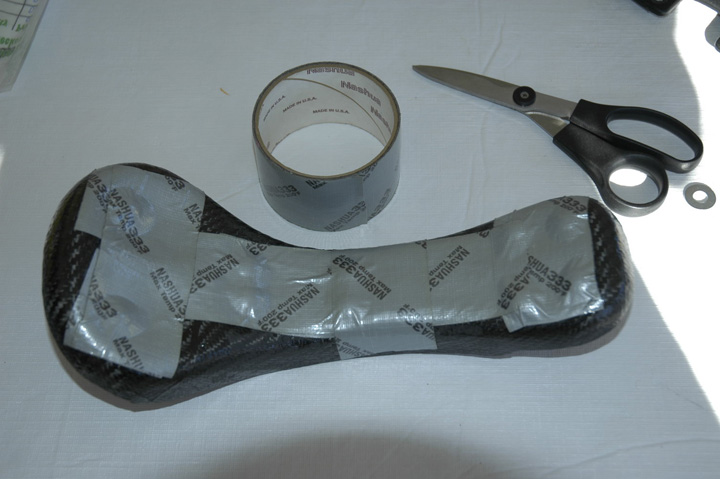

… and a lot more just to be sure:D

timbob1907 · December 28, 2006, 12:36pm

The foam

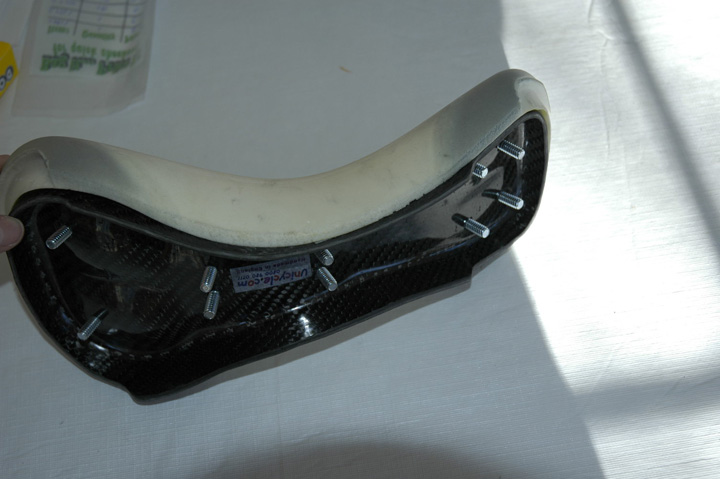

Now i put on my dirty Street foam…

timbob1907 · December 28, 2006, 12:38pm

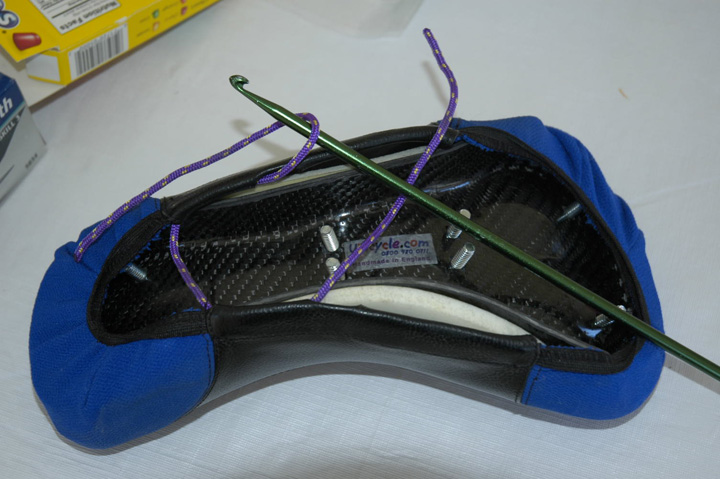

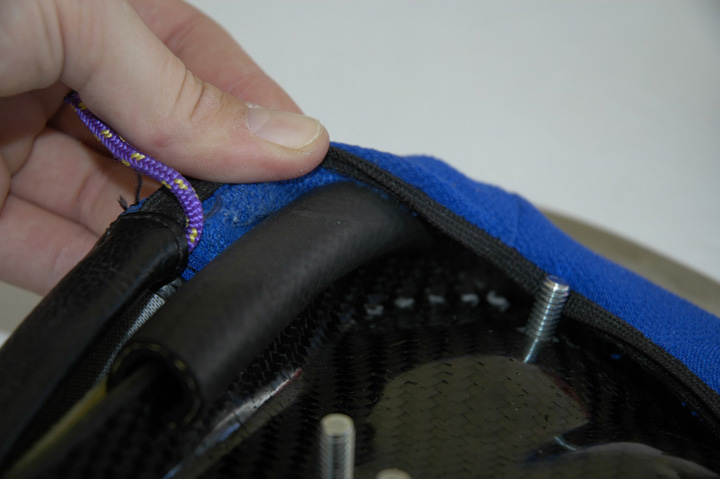

And since i dont know how else to lace a Fusion cover i will use a crochet hook

timbob1907 · December 28, 2006, 12:39pm

And now i have to eat lunch:( oh well

john_childs · December 28, 2006, 12:47pm

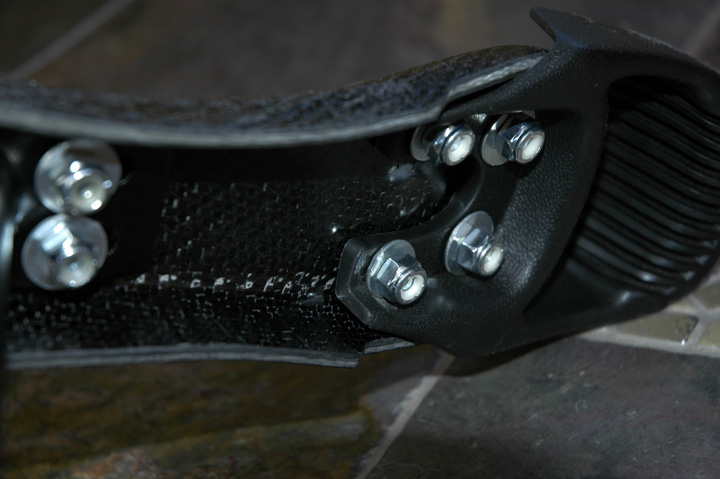

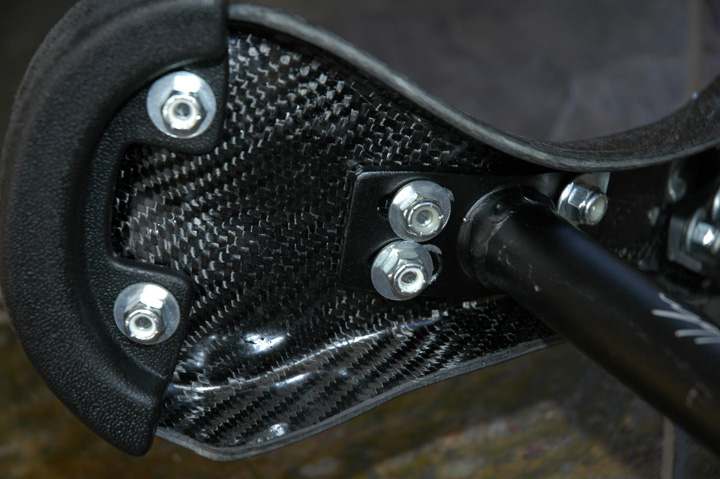

An option for the washers is to use tin snips to cut the washers so they fit better. Here’s an example with one of my seats.

If you end up with problems with the nuts loosening you can put low strength Loctite threadlocker on the threads to keep the nuts tight. The nylock nuts you have may work well enough to keep the nuts from loosening, but if not there is always Loctite.

timbob1907 · December 28, 2006, 1:12pm

Sif grip

Once i tried to put on the handle with the seat cover and the foam on the base i found out that the 3/4 were not long enough so i had to switch them to the 1 inch bolts.
So now i put in a piece of tubing cut in one spot so that i can use it until my SW sif grip comes.

timbob1907 · December 28, 2006, 1:13pm

Almost done

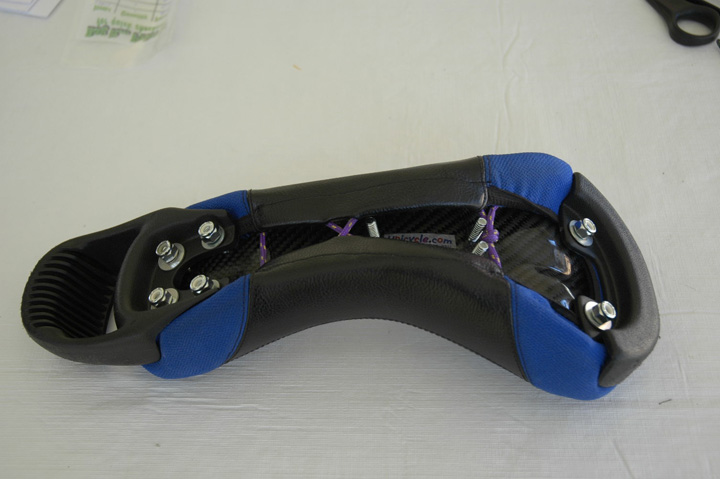

So now i put it all together and i just have to put it on my uni and do some final stuff and then it will be done!

Chrashing · December 28, 2006, 1:18pm

Boy does that look nice! Nice work.

mornish · December 28, 2006, 1:20pm

awesome!

also, you might want to put some vinul tubing or foam underneath where your grab sif because it hurts some peoples hands.

-Miles

primus · December 28, 2006, 1:23pm

he did

One_on_one · December 28, 2006, 2:51pm

Really great job. It will be a lot of help to others who will want to do similar in the future. Just one question. Are the bolts long enough so that they are making good contact with the nylock nuts. The back ones look like they might be a little short.

torkerdx · December 28, 2006, 4:42pm

they were long enough if you worked it, the 3/4 in. screws were long enough if you struggled with it a little. but timbob thought he/I was going to break it when we were struggling to get enough of the scew and bolt to meet up

timbob1907 · December 28, 2006, 6:41pm

That does not make much sence but the 3/4 bolts fit for the bumper and seatpost but you need 1 inch for the front handle. the back bumper just barely was short enough for the nut.
