Folding / take down / traveling wheels

Well Looking at the spokes he uses for his travel penny (in the videos and images above) I can see where the extra weight might come from. This is why berd spokes might be better IMHO, albeit likely a lot more expensive.

While titles can always be improved, I think your selected choice is pretty good to be honest. :+1:

I know from a reliable source that @makym had cut a 36" stealth rim in 3 parts to take it to the UNICON in South Korea. It could be interesting to have his feedback. On the other hand, as we tasted a 36" carbon rim, it must be strange to travel with such a rim.

Yes, I modified 36 stealth rim the same method used by Saskatchewanians years back or Zivit (autor of the headpost).

The hassle with wheel building is often worth it when traveling with planes and public transport.

I would love to see a 36 carbon rim adapted with the same concept.

1 Like

I messaged Dan and he said he could do it but you can’t supply the hubs and the rim will be different to the one pictured (this was a Nimbus 36" rim) and they (the wheels) are purpose made so it can function. The cost would be somewhere around $3,000 Aus.

@UniGeezer is now best buddies with the guys at Nextie, maybe worth a shot?
It might be technically challenging as carbon rims are made in one piece unlike the metal ones!

Friends, I see here is some interest about purchase folding wheels.
I feel possibility to make brand new foldable wheel kit ( the rim, hub Kris Holm Spirit ISIS, particular folding spokes, manual, + Hi Tec present from me) Current calculate is 280€ + shipping.
Ask me in PM.

1 Like

Ok, it just occured to me that I have some OLD bikes in my living room (1890’s Crescents) and the hubs are just tubes with a row of 18 keyhole shaped holes on each end. The spokes are straight with a ball on one end and the nipple on the other. Put the ball in the hole and slide it into the slot. No slipping through a flange and fastening the nipple, just loosen nipple and slide up and out the hole. This or a similar version would make the reassembly of a three part rim imaginably easier and quicker. Just a thought. Think Pullstar spokes!

1 Like

Hi,
the next my folding 29" rim, narrow one, 27mm.
So, I save 400g. in weight in comparison of 46mm rim and get possibility to use and 29x3 trial tire, and road slick 700x35 on the same rim. It tested already, with success. Attentive viewer can see my invention, “know how”, curwed cut line. It lets to ensure correct position of rim sectors ends.

1 Like

Hi,
now I’m testing folding spoke. It should be promising project. If it will be enough reliable, assembling of folding wheel becames much easier. 36" wheel owners will to get ability to use shorter, easy accessible spokes.
Do anybody hear about folding or two parts consist spokes before?

Yes, of course.
From my hometown and the university where I studied:
https://pirope.net/
Or from the US:

1 Like

In 2019, Adventure Unicyclist organized a tour in Cambodia with unicyclists from all around the world: Austria, France, USA, Mexico and Canada. All with 36er. I departed from Montreal, in one huge snow storm of its kind, took 4 planes to reach Siem Reap and came back without any problem and not even having to spend the least penny for that. They lost my backpack between Toronto and Montreal on the travel back but not the uni.Every attendant wanted to see what was in the bag and everybody was very kind.

Hi,
I did mean about two parts spokes, not about rope soft one.

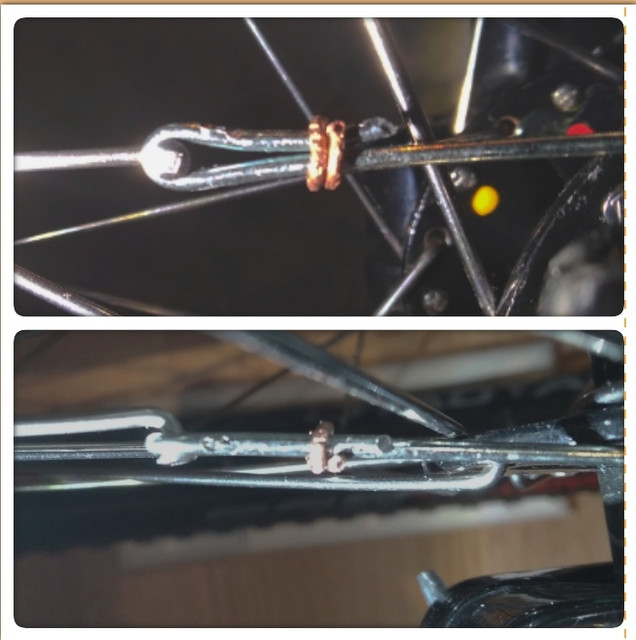

This is my current constructin.

It is easy available for hand make, and works well.
Although I begin to think, that not so often we need to dissasembly and assammble the wheel, to think about to save several minutes or not.
Meanwhile I have techology now, know how.

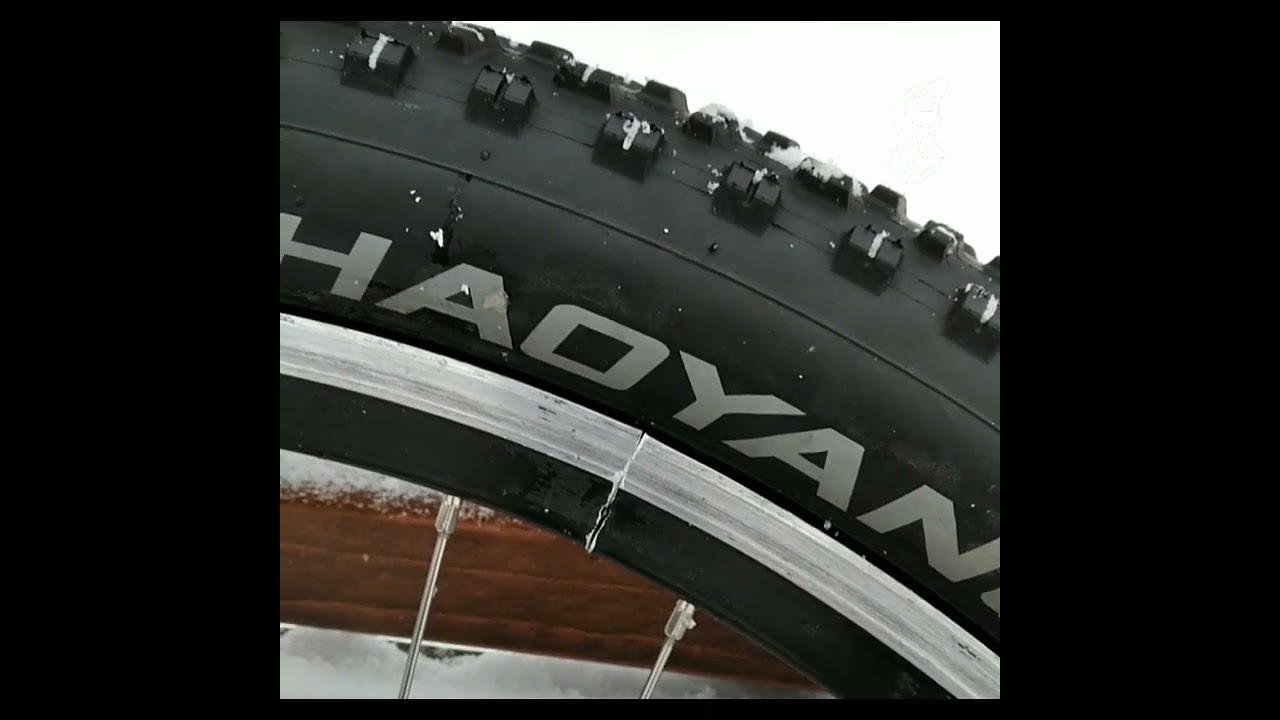

Riding test on video. Folding rim and one folding spoke are there installed:

1 Like

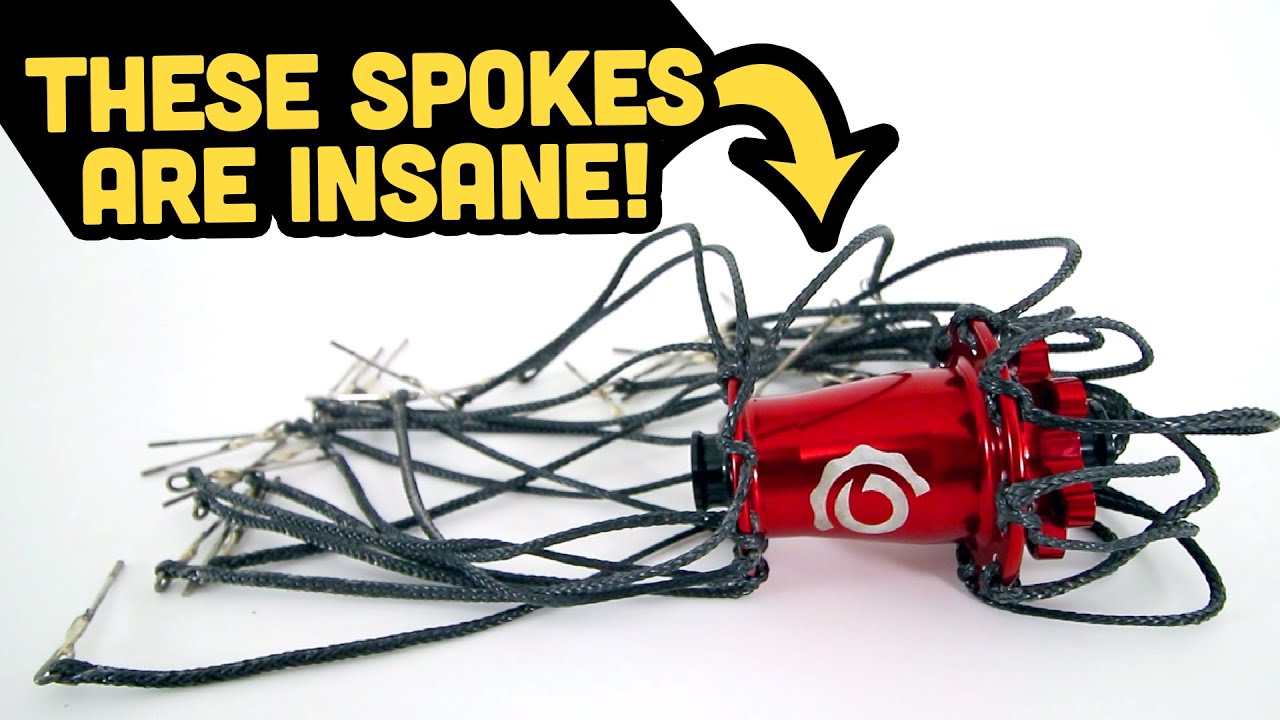

Here is Ali Clarkson’s latest video – on homemade “rope spokes” with Tarty Bikes. I haven’t watched it all yet since it is quite long but it should be pretty interesting.

1 Like

You’d probably be best off using the forum’s inbuilt upload function for images - for whatever reason I can’t see that image either on here or by visiting where it links to.

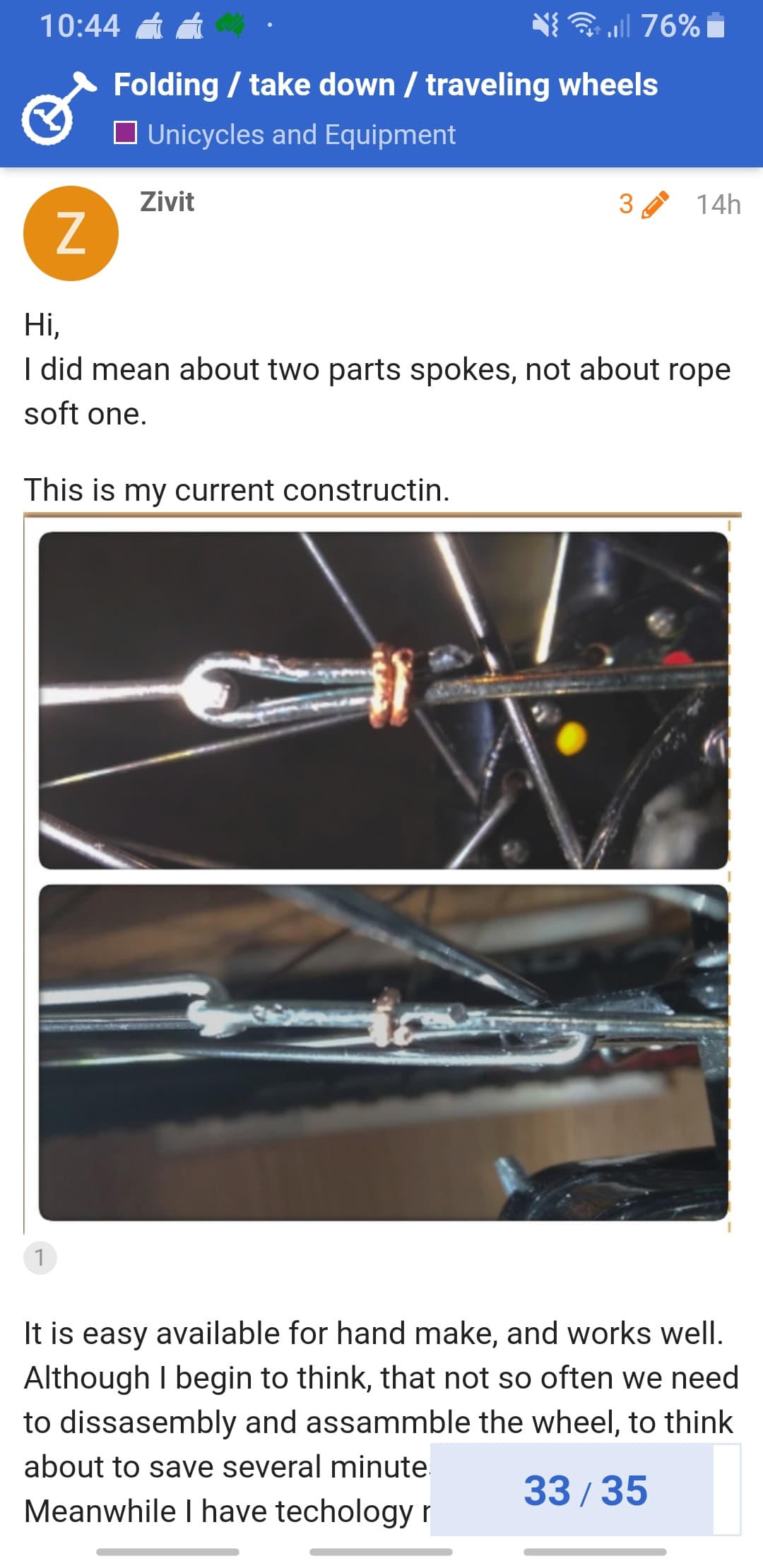

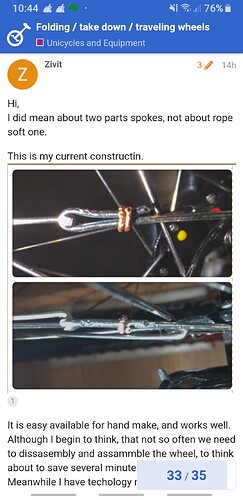

Is this the image you can’t see?

1 Like

Images show up fine for me. Also, the rope spokes seem cool and perfect for this, however near the end of the video it is mentioned that you need to true the wheel multiple times after riding for a bit until it really starts to hold as the rope stretches. This would probably be an absolute pain to do even somewhat frequently. But to take an idea from that video, perhaps the copper wrap could be soldered to the inner spoke for a little piece of mind and to keep things from working loose.

I especially made so thin and small copper wrap for testing. Only one turn of very soft wire. I wanted to check, is it enough for fixing the loop. Yes it is enough. So I know, that there is not so much force doing. Meanwhile, the loop wlthout any wrap opens a little after tension.

1 Like

I think something like this would be perfect

https://www.amazon.com/Aluminum-Crimping-Sleeve-Ferrule-Sleeves/dp/B0921YT62C/ref=asc_df_B0921YT62C/?tag=hyprod-20&linkCode=df0&hvadid=508147197767&hvpos=&hvnetw=g&hvrand=8995537408361568466&hvpone=&hvptwo=&hvqmt=&hvdev=t&hvdvcmdl=&hvlocint=&hvlocphy=9033483&hvtargid=pla-1292261082175&psc=1

1 Like

Or— a little silver braise. (solder on your copper)

2 Likes
